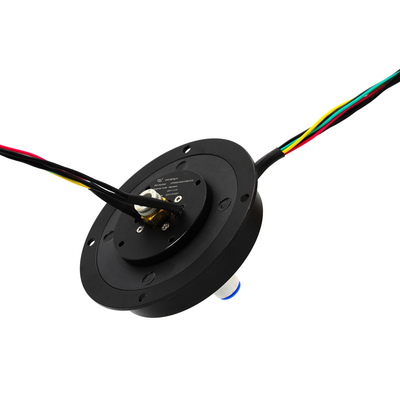

Name: Precious Metal Pancake Slip Ring, 10 Circuits 5A Ethernet Slip Ring Asian Tool Slip Ring
Brand: Precious Metal Pancake Slip Ring, 10 Circuits 5A Ethernet Slip Ring Asian Tool Slip Ring
SKU: LPK000-0405-01E2
Rating: 4.9 (148 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: LPK000-0405-01E2

Type: Electronic Accessories

Circuits: 10 circuits

Voltage Rating: 220VDC/AC or higher

Current Rating: 5A per circuit

Contact Material: Precious metal

Βασικές πληροφορίες

Model Number: LPK000-0405-01E2

Πληρωμής & Αποστολής Όροι

Περιγραφή προϊόντων

Product Description

Bargain Price Only in Alibaba

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

High Rotating Speed
Unfailing contact, light figure
Extremely low physical noise
Transmitting power and signal in 360° rotation
No interference or connection drop

Advantages

Ready-made photoelectric encoder
Optional solid and hollow shafts
Rapid delivery
Custom solution

Specification

Electronic & Electric		Mechanical
Circuits	4circuits * 5A/ 1 circuits* 100M Ethernet	Working Speed	0~50rpm
Working Voltage	220VDC/AC	Contact	Nobel Metal
Dielectric Strength	≥500VAC@50Hz(Current) ≥300VAC@50Hz(signal)	Housing	Sanding oxidation black of aluminum alloy
Insulation	300MΩ@500VDC(Current) 100MΩ@300VDC(signal)	Wire Length	Stator Wire:1000mm Rotor Wire: 1000mm
Environment		Remarks
Temperature	-40°C~+60°C	Installation Method		Rotor is fixed on the flange provided by customer
Humidity	≤60%RH
IP	IP54

Main Application

Packaging / wrapping machinery
Semiconductor handling systems
Industrial machinery
Exhibit Display machinery
Medical equipment
Rotary index tables
Process control equipment
